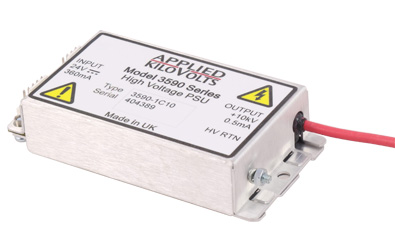

3590 Series
5W Miniature High Voltage Modules
Applications: Mass spectrometers, nuclear instrumentation, ion pump, CRT, image intensifier
- 2.5kV, 5kV 7.5kV and 10kV versions
- Positive and negative polarity options
- Remote voltage programming or potentiometer setting
- Voltage monitor & current monitor included
- Encapsulated in screened metal case for reduced EMI
- Flashover & short circuit protected
- UL approved and CE marked
This range of high performance 5W high voltage power supplies has been specifically designed for applications where space is at a premium. These compact DC to DC converter modules operate from a dc supply of either 12V or 24V (nominal) and provide an accurately controlled high voltage output. The use of high stability components within the feedback system ensures a low temperature coefficient and good long & short term drift making the 3590 series ideal for use in many low power and portable applications. The output voltage may be controlled from 50V to maximum (2.5, 5, 7.5 or 10kV) by means of an external control voltage of 0 to +5V (or +10V to special order). Monitoring of output voltage and current are also provided as are fixed and variable references.
| Electrical Specification | ||||||
|---|---|---|---|---|---|---|
| Unit Type (180° Connector) | Unit Type (90° Connector) | Input Voltage | Output Voltage | Output Current | Polarity | |
| 3590-1420 | 3590-1410 | 12V | +2.5kV | 2mA | Positive | |
| 3590-1120 | 3590-1110 | 12V | +5kV | 1mA | Positive | |
| 3590-1220 | 3590-1210 | 12V | +7.5kV | 0.65mA | Positive | |
| 3590-1320 | 3590-1310 | 12V | +10kV | 0.5mA | Positive | |
| 3590-1D20 | 3590-1D10 | 24V | +2.5kV | 2mA | Positive | |
| 3590-1A20 | 3590-1A10 | 24V | +5kV | 1mA | Positive | |
| 3590-1B20 | 3590-1B10 | 24V | +7.5kV | 0.65mA | Positive | |
| 3590-1C20 | 3590-1C10 | 24V | +10kV | 0.5mA | Positive | |
| 3590-2XXX | As above for Negative equivalents | Negative | ||||
| 3590-XXX1 | As above for 0 to +10V control input (NB: Fixed and variable reference are not fitted). | |||||
| Input (12V type) | +10.8V to +15.6V dc. No load current: 120mA at 12V i/p. Full load current: 730mA at 12V i/p. |
|---|---|
| Input (24V type) | +21.6V to +30V dc. No load current: 80mA at 24V i/p. Full load current: 360mA at 24V i/p. |
| Output ripple | 500mV peak to peak. |
| Line regulation | <75ppm for a 1V change in input voltage. |
| Load regulation | 2.5kV models: <1500ppm for zero to full load. Other models: <500ppm for zero to full load. |
| Drift (after 1 hour warm up) | <150ppm over 8 hour period, <100ppm over 1 hour. |
| Protection | Current limited to 130%. Protected against intermittent flashover to ground |
| Control of Output | 0 to 5V for 0 to 100% rated output voltage, input Z = 1M |
| Reference Output (fixed) | +5V ±2%, temp-co 50ppm / oC |
| Reference Output (variable) | Zero to +5V, multi-turn potentiometer. |
| Voltage Monitor | Zero to +5V for zero to 100% rated output voltage, ±1% (source Z= 10k) |
| Current Monitor | Zero to +5V for zero to 100% rated output current, ±5% (source Z= 10k) |
| Mechanical Specification | |
|---|---|
| Dimensions | 95.2 x 49.8 x 20 mm (3.75” x 1.96” x .79”) |
| Weight | 150g (5.3 oz.) approximately |
| Mountings Centres | 2 holes 4.2mm diameter on 88.8 (3.5”) centres |
| Input / Control | 0.1” pitch connectors (Molex series 6410) 4 and 5 way |
| Output | Flying lead, red UL3239 un-screened 20kV cable 0.4m long. HV Return: M3 stud or fixings. |
