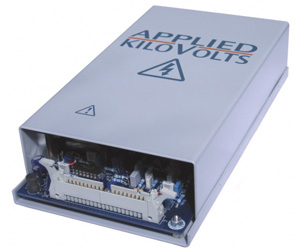

MS0.2 Series
Precision High Voltage Module
MS0.2MZZ065
Applications: Beam steering, Focus and bias supplies, Deflector Plates, Electron guns & Ion beams
- High Stability, Low Ripple
- Externally programmable - through zero control
- Short circuit and flashover proof
- 24 hour burn in
This power supply provides six outputs each separately programmable from -200V to +200V with respect to Gnd. It is intended for steering, focusing & biasing of electron & ion beam applications. Biasing steering plates in pairs, this can control X, Y & Z directions. Each output is controllable cleanly through zero.
Please consult the factory for special variants of this supply including high speed versions.
| Electrical Specification | |
|---|---|
| Input | +24V dc ±0.5V <0.5A. 0V input common to HV return and chassis. +15V dc ±0.5V <0.5A , & -15Vdc ±0.5V <0.05A. |
| Control of Output | -10V to +10V for –100% to 100% ±2%, (Zin = 200Kohm) |
| Output Current | 100μA per channel |
| Voltage monitor | -8V to +8V ±2% for –100% to 100%. (Zout= 10k) |
| Current Monitor | Not available |
| Ripple | <25mV pk to pk |
| Line regulation | <100ppm for 1V change in input voltage |
| Load regulation | <100ppm for 10uA to maximum load |
| Temperature co-efficient | <25ppm/ºC |
| Drift (after 1 hour warm up) | <0.01% per hour, <0.05 over an 8 hour period |
| Protection (all outputs) | Protected against intermittent arcing and continued short circuit to ground. While able to source or sink 100uA, the unit will be damaged by sustained sinking of a beam current in excess of 200uA. |
| Environmental Specification | |||
|---|---|---|---|
| Temperature, storage | +10°C to +50°C. | Humidity (RH) <31°C | 80% maximum |
| Temperature, operating | -35°C to +85°C. | Humidity (RH) >30°C | Decrease linearly to 50°C |
| Altitude, operating | Up to 2,000m. | Altitude, storage | Up to 18,000m |
| Mechanical Specification | |
|---|---|
| Dimensions | 210 x 114 x 47 mm |
| Mounting centres | 4 off M4 studs |
| Input / control | 40 Way IDC header, 0.05” pitch, straight latching, bump/clip polarized (Thomas & Betts 635-4034ES) Mating connector supplied. |
| Mating Output Socket | QM 12 way plug, Souriau SMS 12 P1, plus SMS12H1 (Hood) plus 12 off T2P20FC1LT Trident 20AWG socket contacts |
